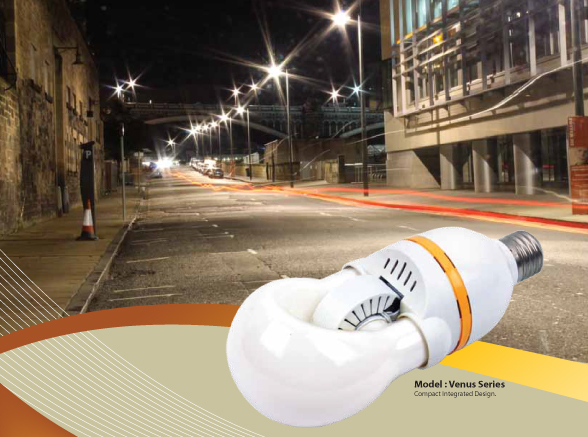

Retrofit Bulb

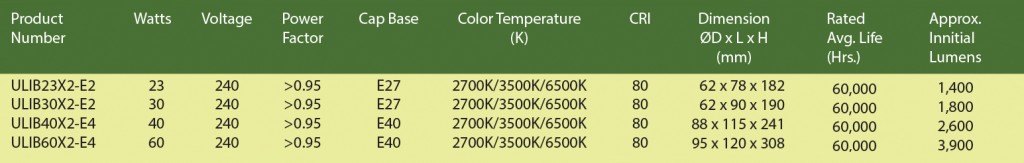

Electrical and Technical Data

Maintenance Free and low degradation:
Because there is no filament or electrode, the life span amounts up to 80,000 hours. The average degradation rate is 15% in life time.

High efficiency and energy saving:
High efficiency, it achieves ≥86 lm/W, the power factor is more than 0.98, cosφ 90° ≥0.98, lamp power consumption ≤ 0.02 input ≈output.
High frequency electrode-less discharge lamp 100W is equiv to a 600W incandescent light. Under normal circumstances, a 85W high frequency electrode-less discharge lamp light output equals to 170W of Metal Halide, 250W of high pressure sodium, and 500W of incandescent.

No flickering, low glare, good for eyes:
Because of high efficiency, there is no flickering and the light is very stable and bright. It works unaffected by vibration and/or shaking.

Environmentally safe:
It uses less than 3mg of encapsulated solid amalgam mercury. When the bulb breaks, it will not cause pollution. The lamp is 99.6% recyclable.

High colour rendering index:
Colour rendering index is ≥80, various colour can be chosen from 2700K ~ 6500K.

High dependability:
The product is available in both AC and DC models. The AC voltage is in the scope from 110V to 264V, 480V, and the DC in 12V or 24V. The operation temperature is between -40°F to +122°F.

No radiation pollution:
The product passes the national EMC test, it does not create stray radiation pollution. It mateches the international EMI standard EN55015.

Rapid start, no warm-up period:
The function of start and restart is instant and it will not cause light degradation.

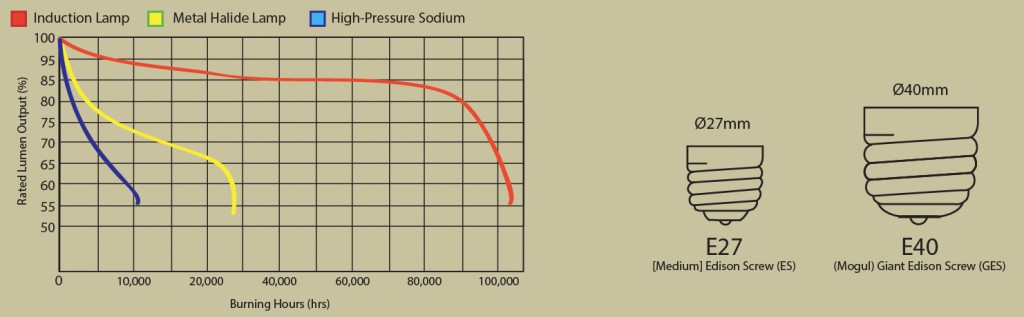

Lumens Maintenance Curves for Various Commercial Light Types

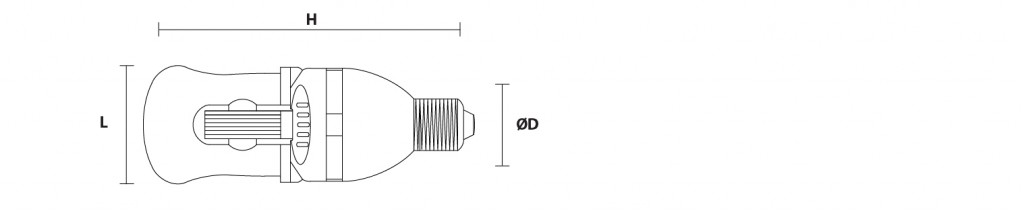

Dimensions (mm)
